SP02503HDNC ASP0250304-001
Description
- ethernet-capable spring clamp terminal block with eccentric lever, pluggable
- centerline 5.00 mm, direction of connection 90°
- fittable without loss of poles
- color gray, color coding for conductor colors according to SPE (white/blue/S)
Technical Data
General Data
CTI 600
3.7 mm
IP20
Connection Data
0,08 - 1,5 mm²
AWG 28 - 16
0,08 - 0,75 mm²
AWG 28 - 18
Material
PPA
V0
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory

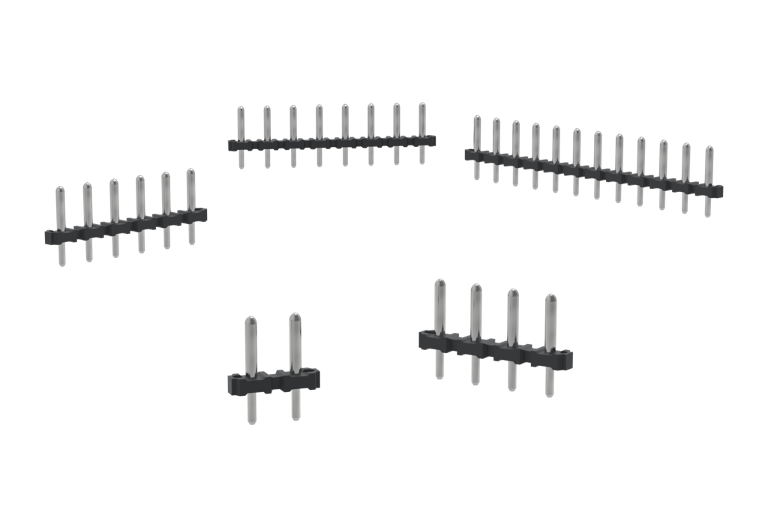

Matching counterpart
Part number
ASP0250304-001
Downloads
- Brochure (Application Note Ethernet Terminal Blocks)
- 3D-Data - Registration required -
- Data sheet
