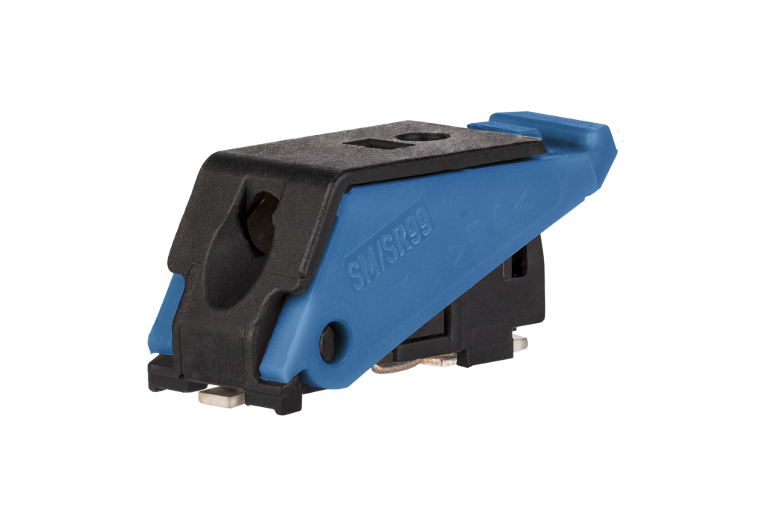

SM99S01VBNN05G7 blue
Description
- ethernet-capable spring clamp terminal block, SMT solderable
- direction of connection 90°
- fittable without loss of poles
- color blue
- Tape & Reel packaging

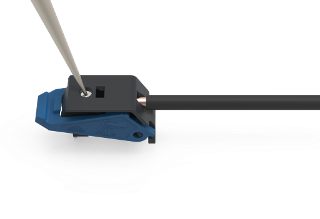

- finger push-button
- test point and wire connection indicator
- Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
Technical Data
General Data
CTI 600
IP20
Connection Data
0,2 - 1,5 mm²
AWG 24 - 16
0,2 - 1,5 mm²
AWG 24 - 16
Material
PPA
V0
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
SM99S01VBNN05G7
4250184193715
Downloads
- RoHS Certificate
- Product video
- Data sheet
- Brochure (Internet of Things - Connectivity Solutions)
- Brochure (SM99 and SR99)
- Brochure (Application Note Ethernet Terminal Blocks)
- REACh Statement
- 3D-Data - Registration required -
- PCB compensation - Registration required -
