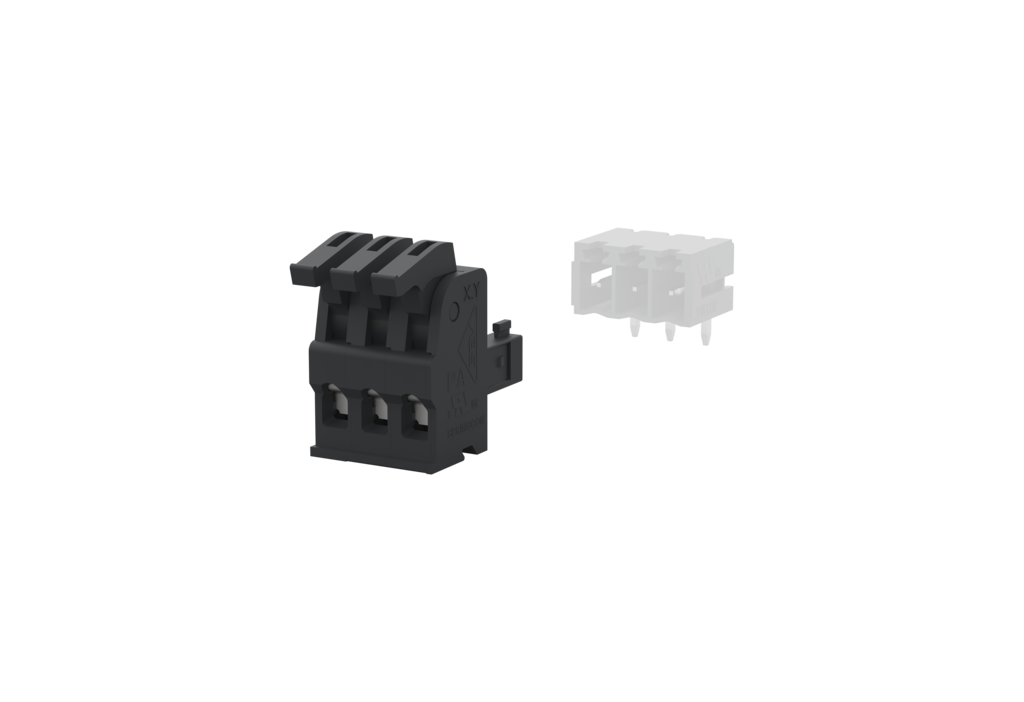

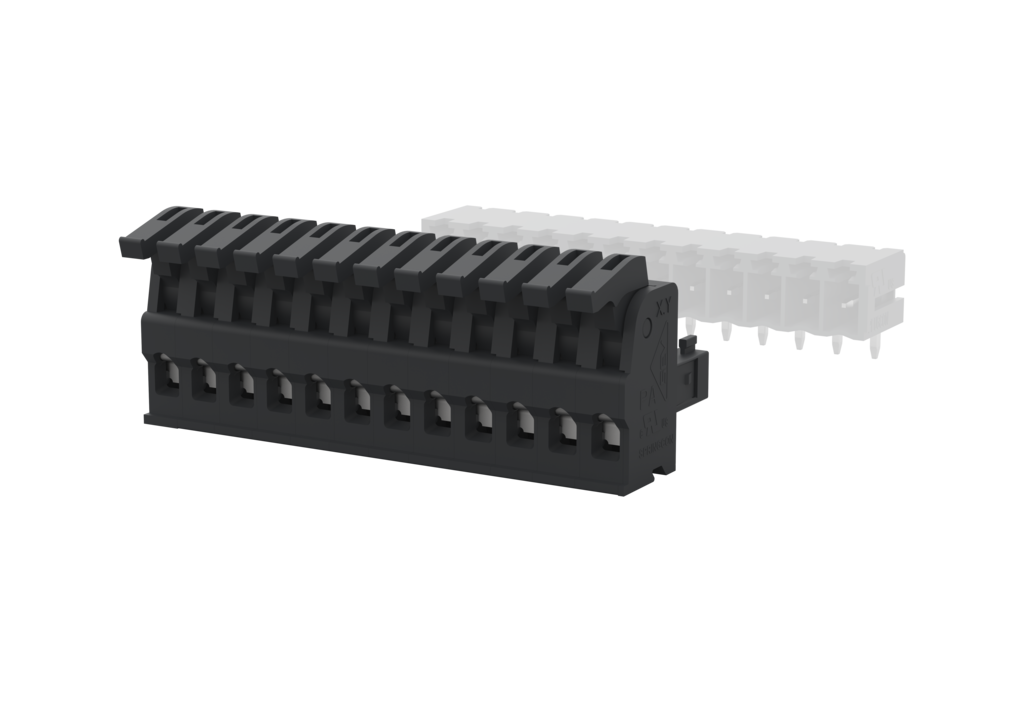

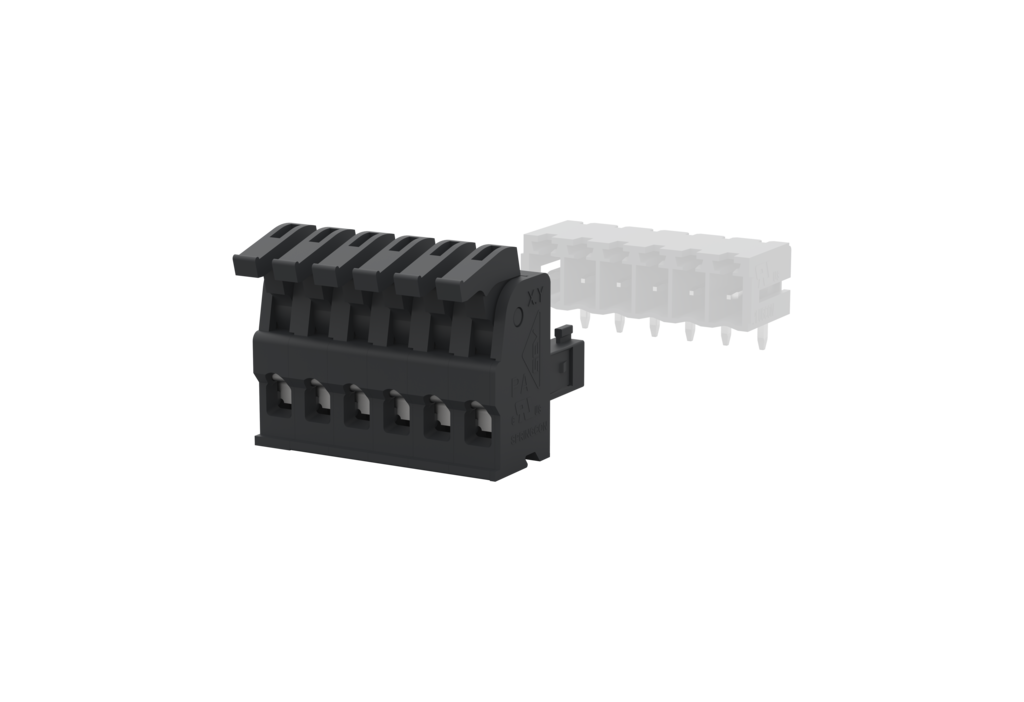

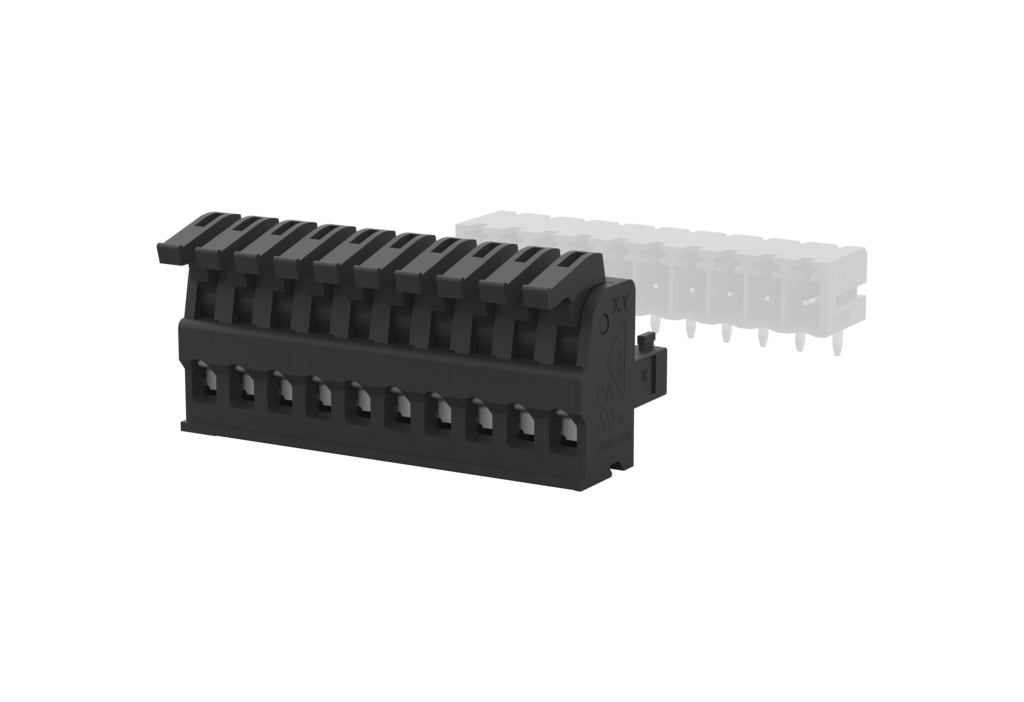

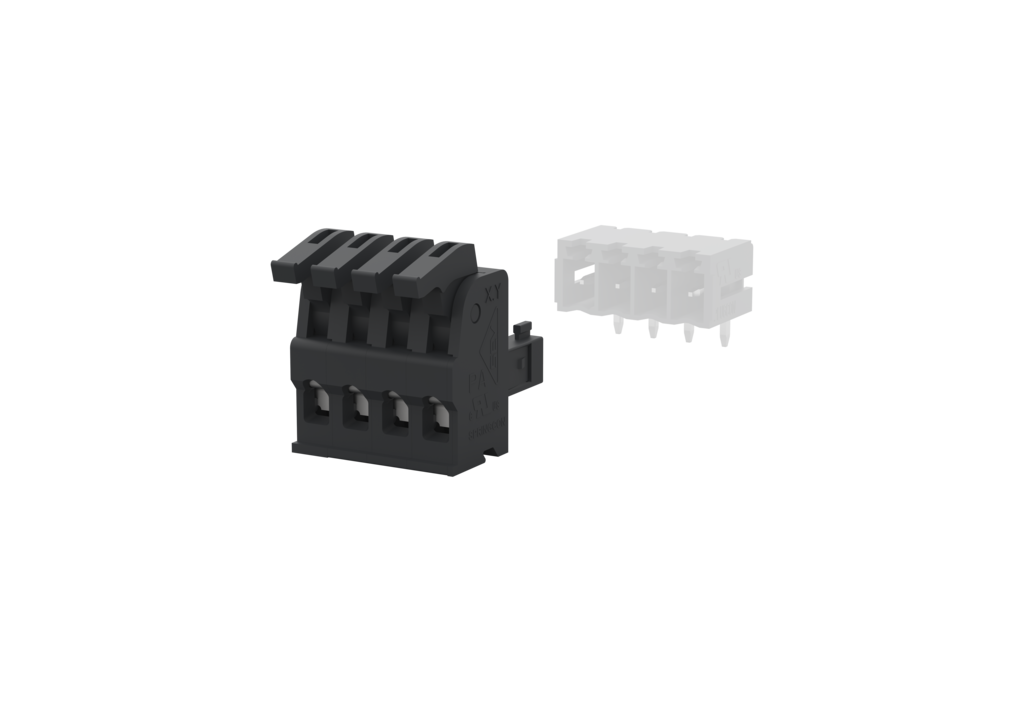

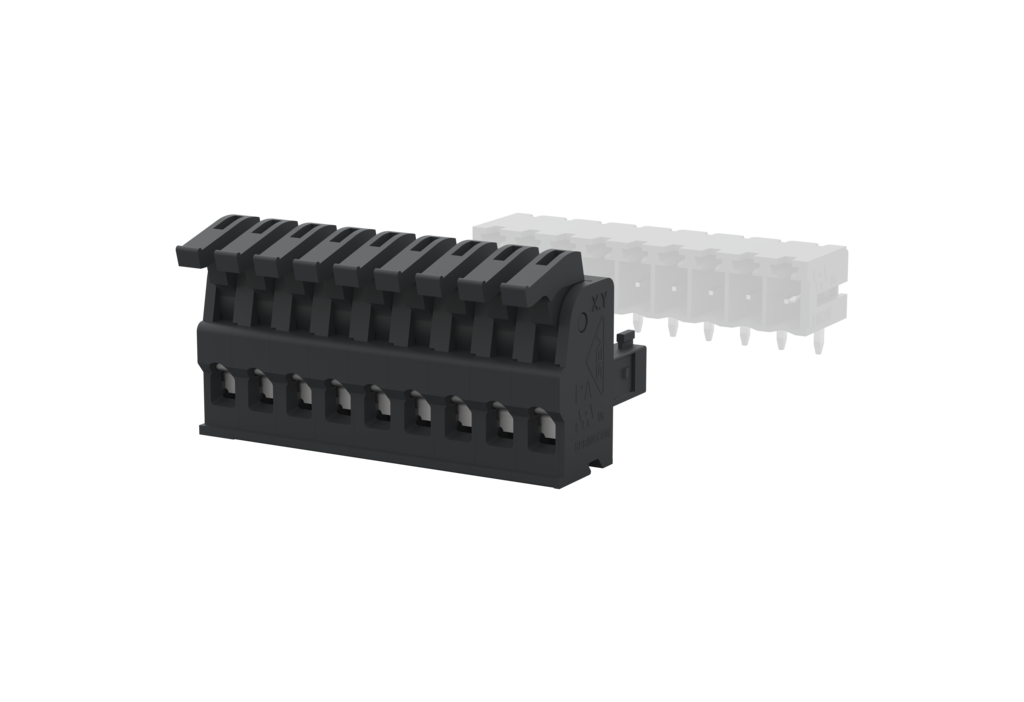

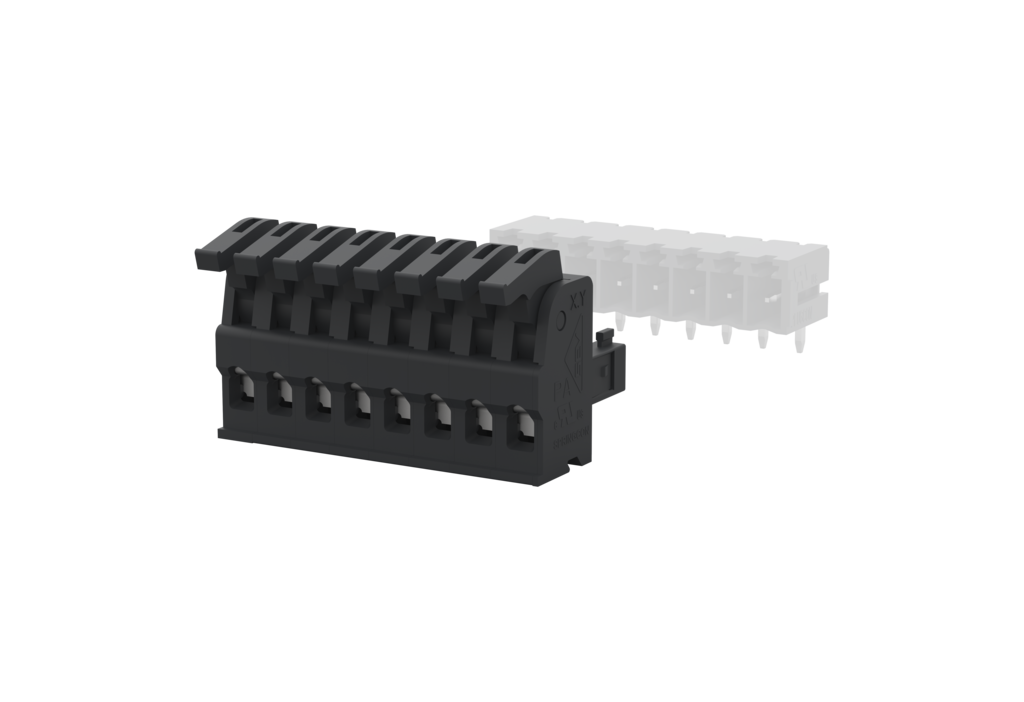

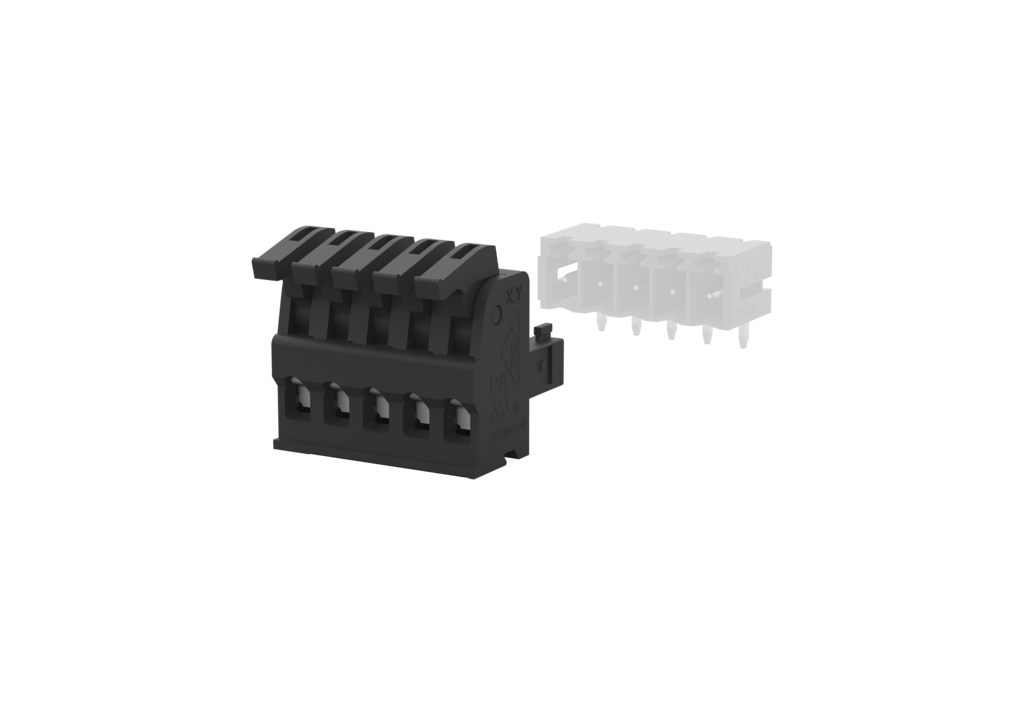

SP044xxVBNN ASP044
Description
- spring clamp terminal block, pluggable
- centerline 3.81 mm, direction of connection vertical 0°
- color black
- eccentric lever, wire entry uncodeable side parallel to plug direction
Technical Data
General Data
2
12
CTI 400
2.6 mm
IP20
6 mm
10 A
Connection Data
0,08 - 1,5 mm²
AWG 28 - 16
0,08 - 1,5 mm²
AWG 28 - 16
Material
PA46
V0
Spring steel
CuSn
Sn
-
-
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Matching counterpart
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes available within 4-6 weeks
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
