ST024xxHDNC AST024

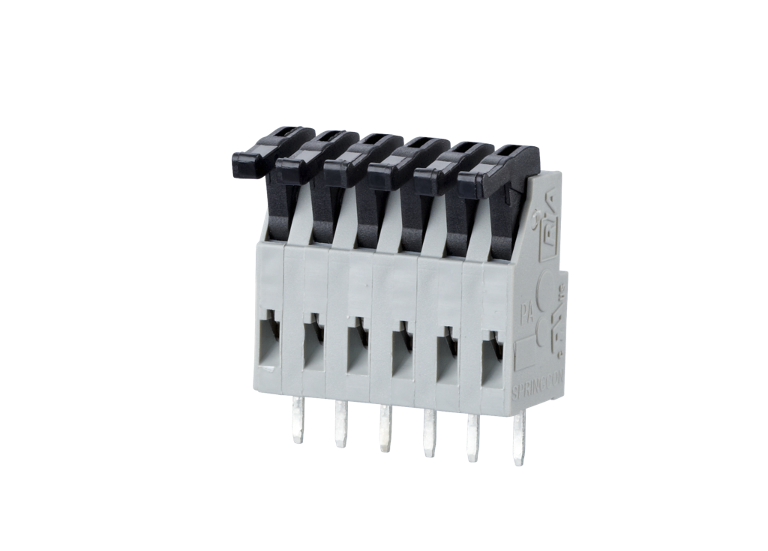

Description
- spring clamp terminal block, solderable
- centerline 3.81 mm, direction of connection 90°
- color gray
- eccentric lever
Technical Data
General Data
5 mm
2
24
CTI 600
3 mm
IP20
6 mm
6 A
Connection Data
0,2 - 0,5 mm²
AWG 28 - 20
0,2 - 0,5 mm²
AWG 28 - 20
Material
PA
V0
Spring steel
CuSn
Ni + Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes available within 4-6 weeks
