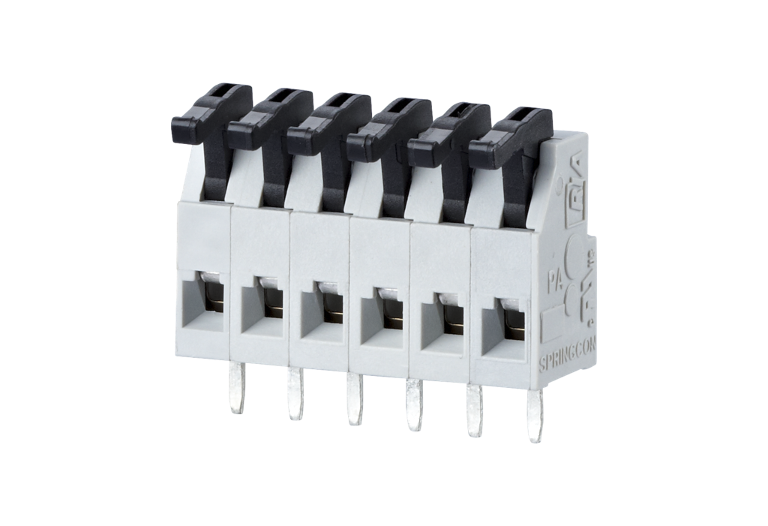

ST025xxHDNC AST025

908245
869337
871475

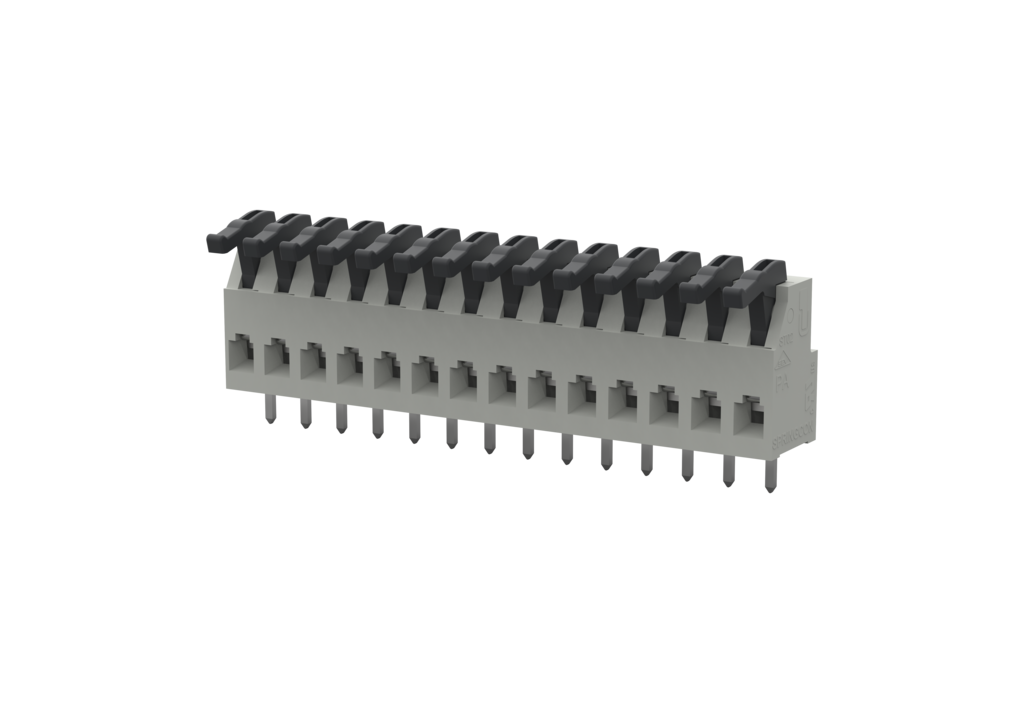

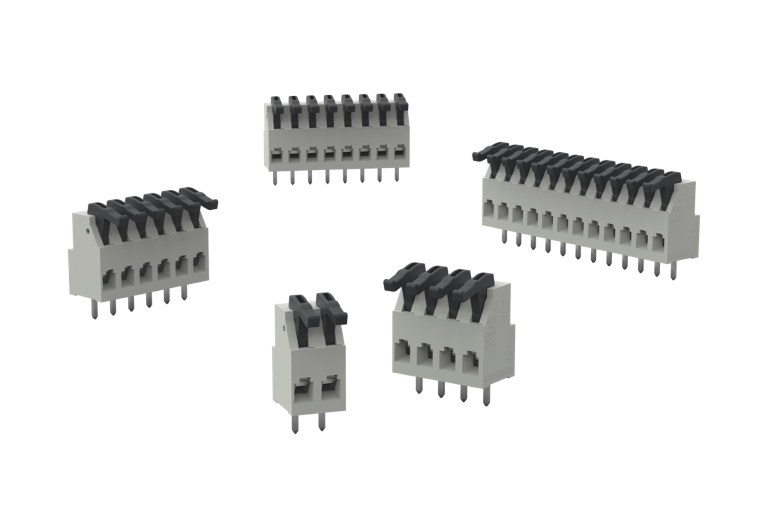

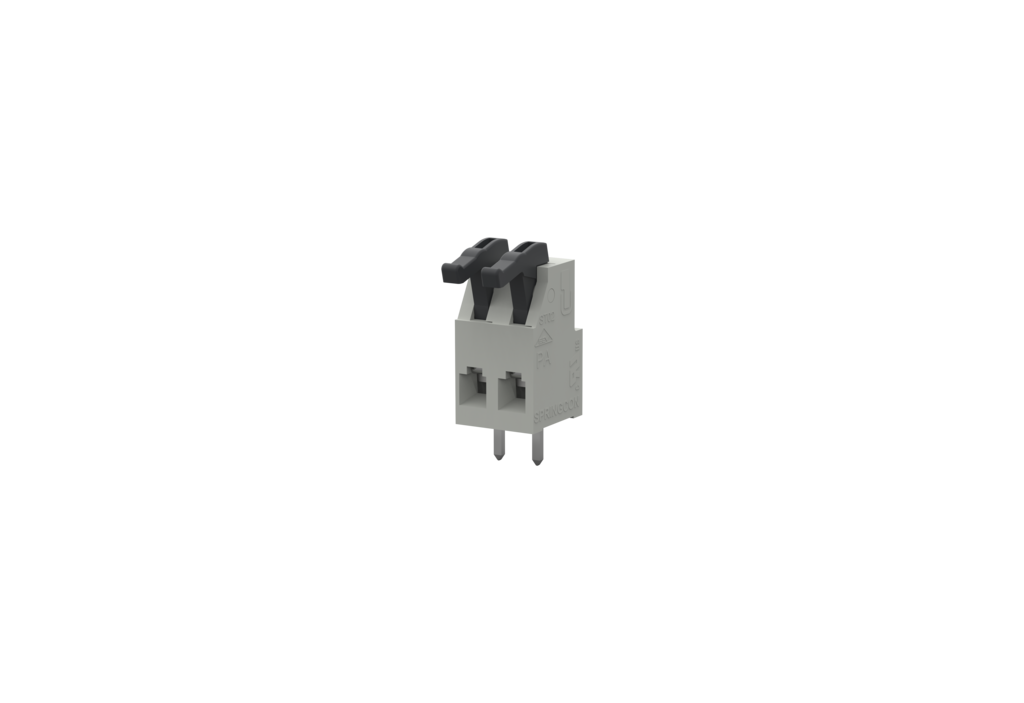

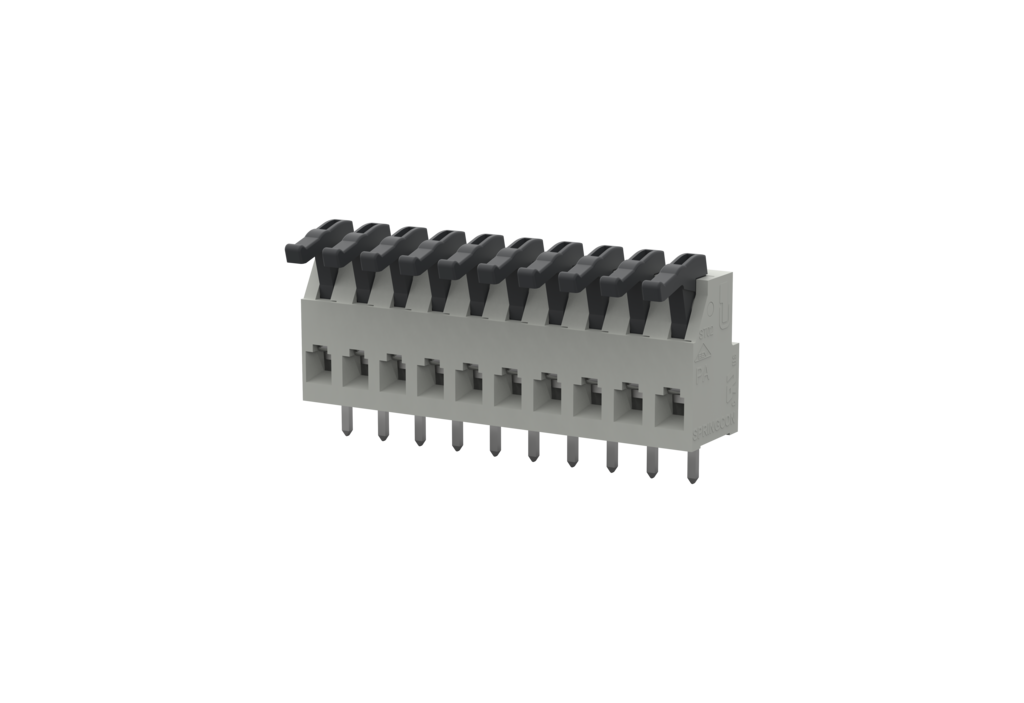

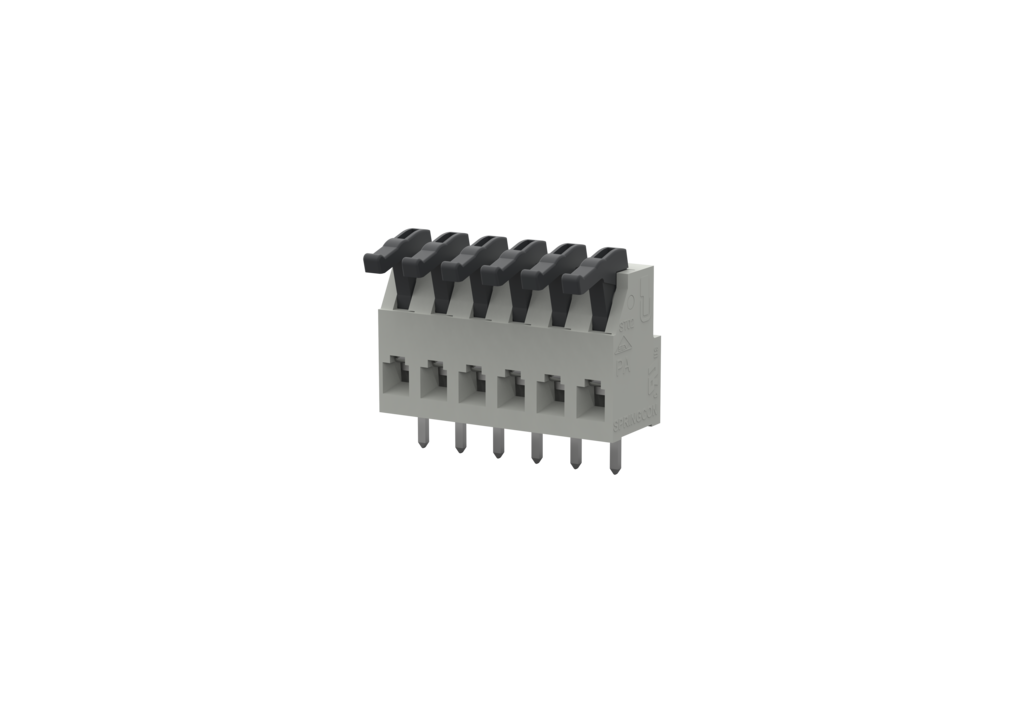

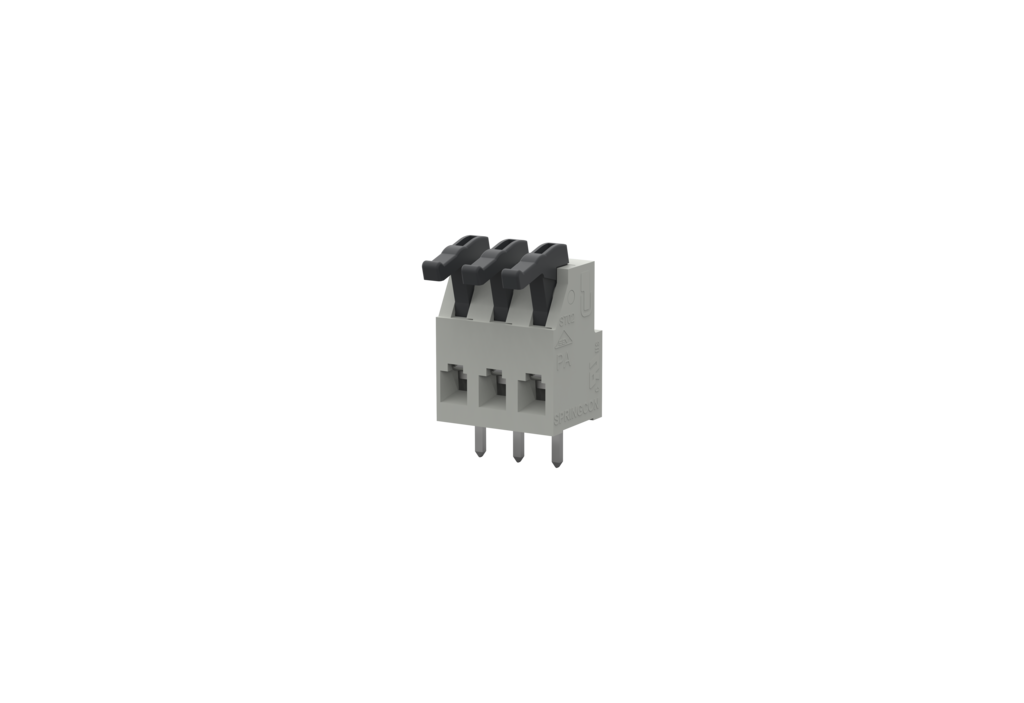

Description
  • spring clamp terminal block, solderable
  • centerline 5.00 mm, direction of connection 90°
  • fittable without loss of poles
  • color gray
  • eccentric lever
logo_culus logo_sev
Technical Data
General Data
5 mm
2
24
CTI 600
4 mm
IP20
6 mm
12 A
Connection Data
0,2 - 2,0 mm²
AWG 28 - 14
0,2 - 2,0 mm²
AWG 28 - 14
Material
PA
V0
Spring steel
CuSn
Ni + Sn
850 °C acc. to IEC 60695-2-12
-
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

AST025

04

Standard pole sizes from stock

Pole sizes available within 4-6 weeks

Pole sizes only available on demand

Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
