ST065xxHDNN AST065

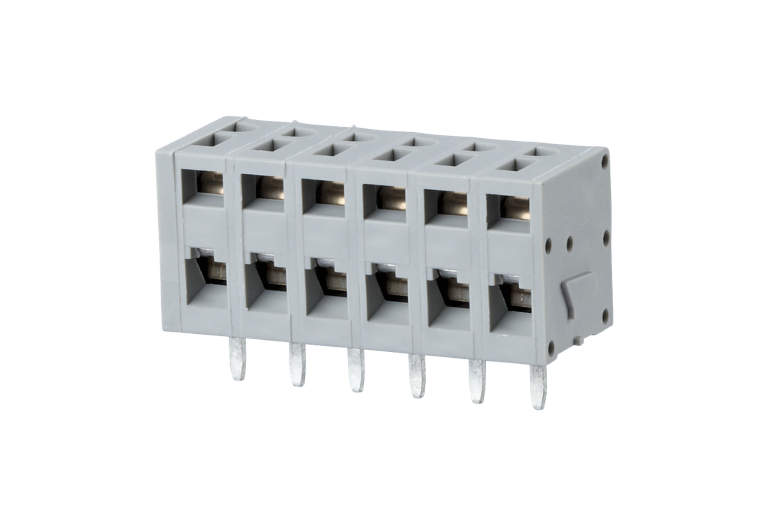

Description
- spring clamp terminal block, solderable
- centerline 5.00 mm, direction of connection 90°
- color gray
- without eccentric lever
Technical Data
General Data
5 mm
2
24
CTI 600
4 mm
IP20
6 mm
12 A
Connection Data
0,2 - 2,0 mm²
AWG 28 - 14
0,2 - 2,0 mm²
AWG 28 - 14
Material
PA66
V0
Spring steel
CuSn
Ni + Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes available within 4-6 weeks
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
