ST105xxVDNN AST105

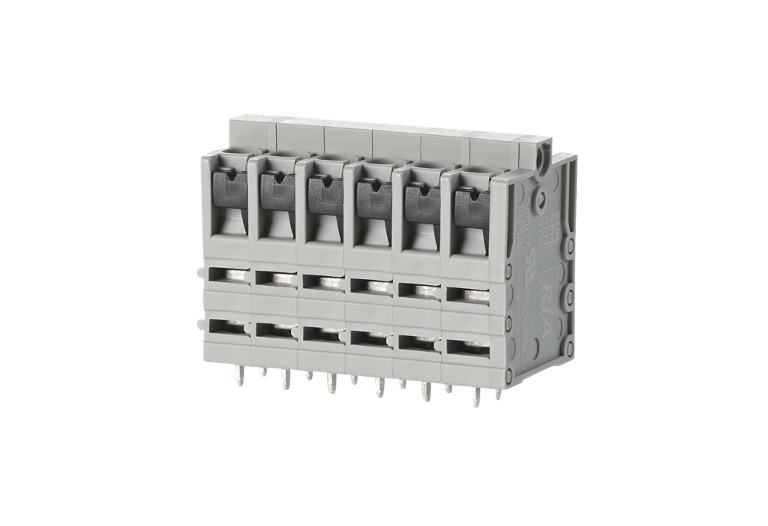

Description
- spring clamp terminal block, solderable, double solder pins
- centerline 5.00 mm, direction of connection vertical 0°
- color gray
- push-button, double solder pins
Technical Data
General Data
3.4 mm
2
24
CTI 600
4.5 mm
IP20
15 mm
16 A
Connection Data
0,2 - 2,5 mm²
AWG 28 - 12
0,2 - 2,5 mm²
AWG 28 - 12
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes available within 4-6 weeks
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
