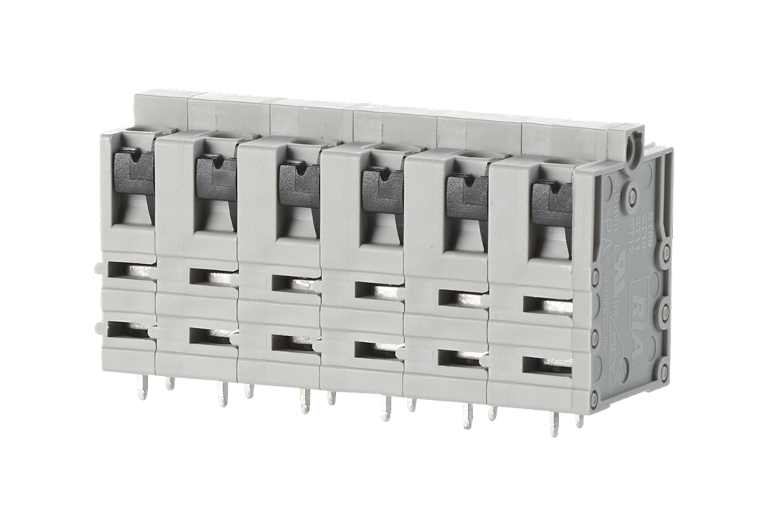

ST108xxVDNN AST108
Description
- spring clamp terminal block, solderable, double solder pins
- centerline 7.62 mm, direction of connection vertical 0°
- color gray
- push-button, double solder pins
Technical Data
General Data
3.4 mm
2
12
CTI 600
7.12 mm
IP20
15 mm
16 A
Connection Data
0,2 - 2,5 mm²
AWG 28 - 12
0,2 - 2,5 mm²
AWG 28 - 12
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes available within 4-6 weeks
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
Downloads
- Data sheet
- 3D-Data (3D-Data ST10812VDNN_AST10812) - Registration required -
- 3D-Data (3D-Data ST10811VDNN_AST10811) - Registration required -
- 3D-Data (3D-Data ST10810VDNN_AST10810) - Registration required -
- 3D-Data (3D-Data ST10809VDNN_AST10809) - Registration required -
- 3D-Data (3D-Data ST10808VDNN_AST10808) - Registration required -
- 3D-Data (3D-Data ST10807VDNN_AST10807) - Registration required -
- 3D-Data (3D-Data ST10806VDNN_AST10806) - Registration required -
- 3D-Data (3D-Data ST10805VDNN_AST10805) - Registration required -
- 3D-Data (3D-Data ST10804VDNN_AST10804) - Registration required -
- 3D-Data (3D-Data ST10803VDNN_AST10803) - Registration required -
- 3D-Data (3D-Data ST10802VDNN_AST10802) - Registration required -
