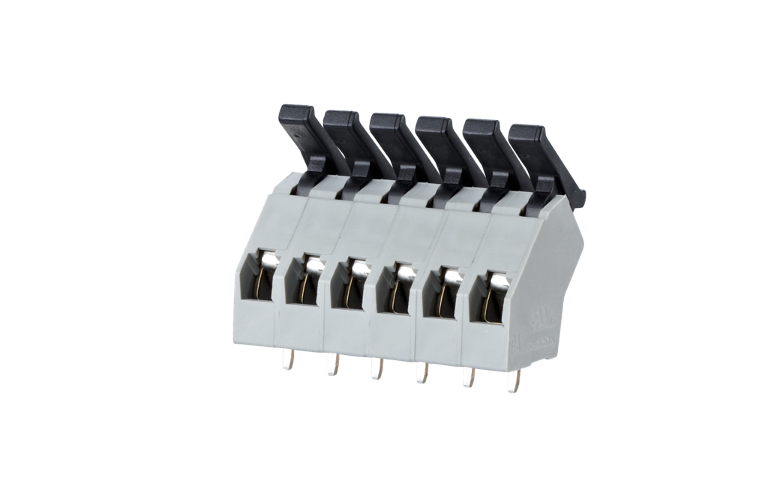

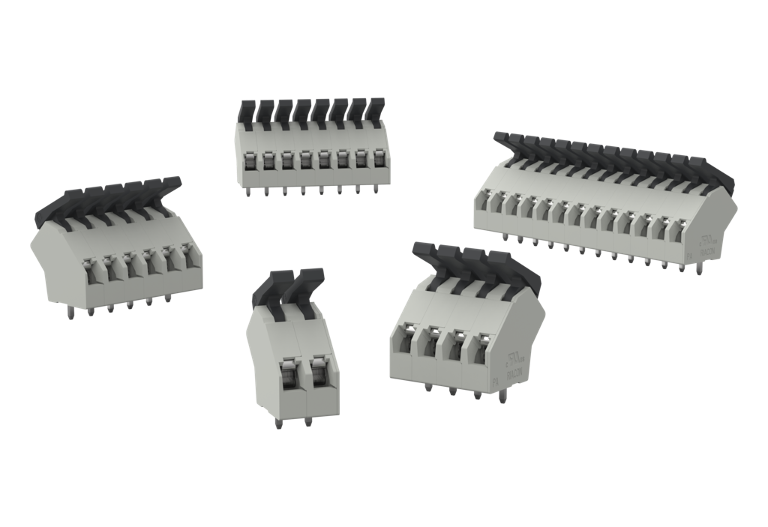

ST135xxDDNC AST135
Description
- spring clamp terminal block, solderable
- centerline 5.00 mm, direction of connection 45°
- fittable without loss of poles
- color gray
- eccentric lever
Technical Data
General Data
3.5 mm
1
24
CTI 600
4 mm
IP20
6 mm
19 A
Connection Data
0,2 - 2,5 mm²
AWG 28 - 12
0,2 - 2,5 mm²
AWG 28 - 12
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes available within 4-6 weeks
Pole sizes only available on demand
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
