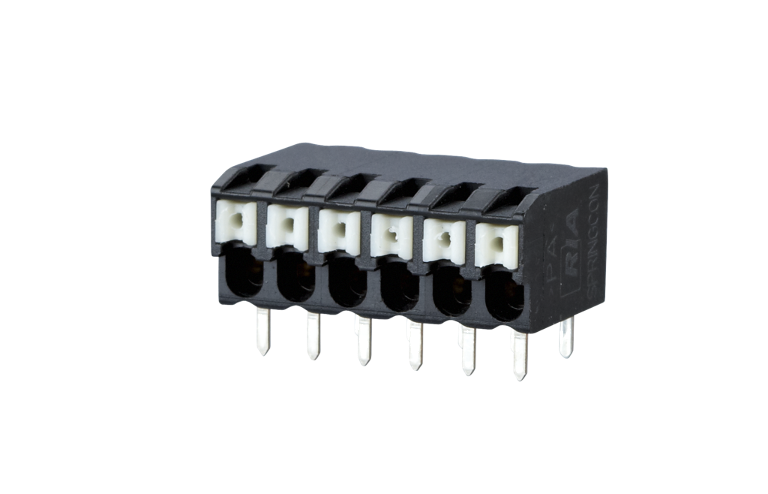

SR213xxHBNC AST223
Description
- spring clamp terminal block, THR solderable, double solder pins
- centerline 3.50 mm, direction of connection 90°
- fittable without loss of poles
- color black
- Tape & Reel packaging possible
- push-button
Technical Data
General Data
3.45 mm
2
12
CTI 600
2 mm
IP20
8.5 mm
13.5 A
Connection Data
0,08 - 1,5 mm²
AWG 28 - 16
0,08 - 1,5 mm²
AWG 28 - 16
Material
PA66/6T
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes only available on demand
