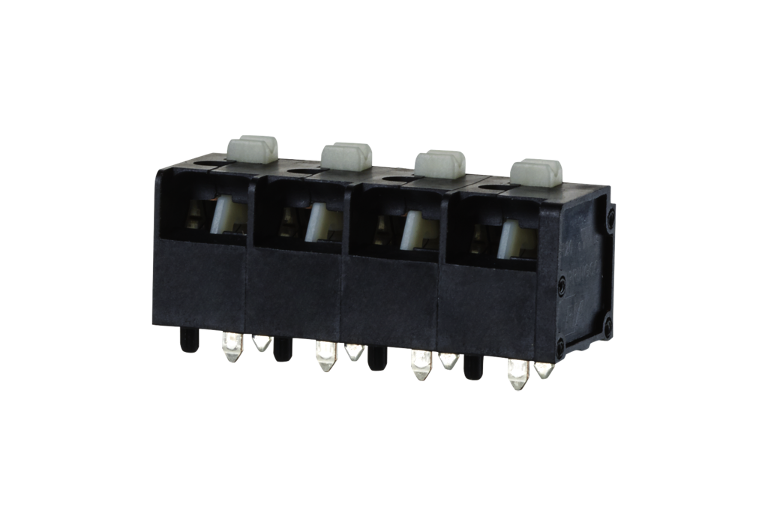

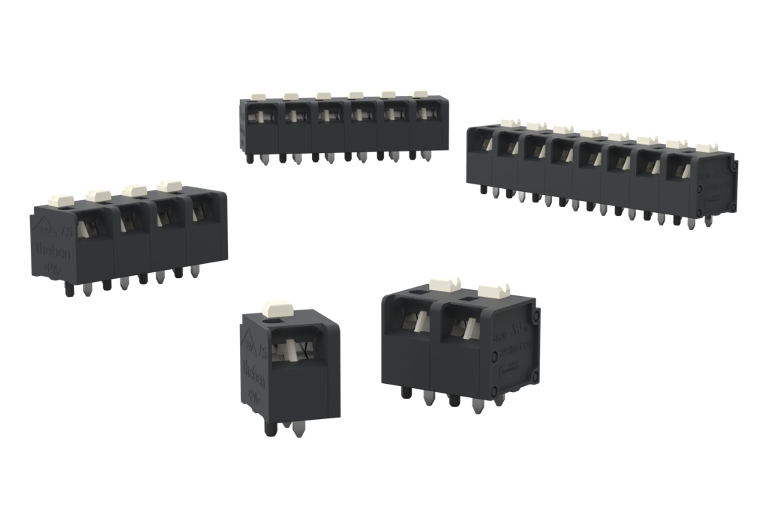

SR207xxDBVN
Description
- spring clamp terminal block, THR solderable, double solder pins
- centerline 7.50 mm, direction of connection 45°
- color black
- push-button, double solder pins
- Tape & Reel packaging possible
Technical Data
General Data
3 mm
1
12
CTI 600
4.7 mm
IP20
9 mm
16 A
Connection Data
0,5 - 2,5 mm²
AWG 20 - 14
0,5 - 2,5 mm²
AWG 20 - 14
Material
PA/PPA
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
125 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Pole sizes available within 4-6 weeks
Pole sizes only available on demand
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
