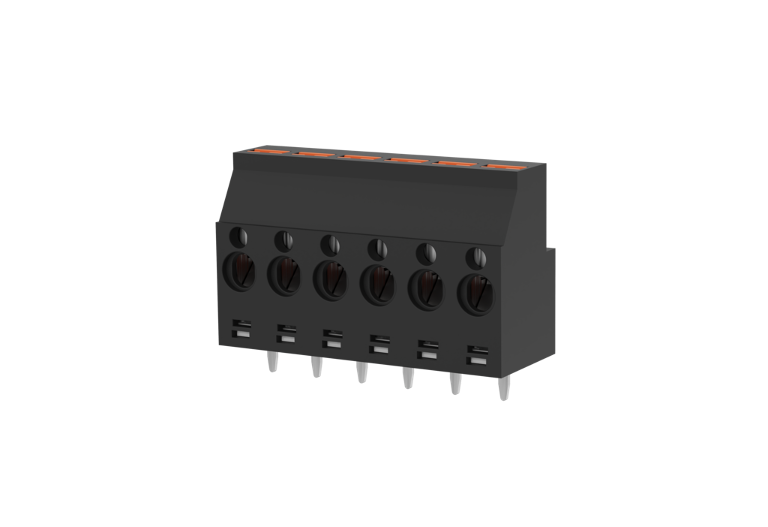

SR25506HBNC, 6-pole
Description
- spring clamp terminal block, THT solderable
- centerline 5.00 mm, direction of connection 90°
- fittable without loss of poles
- color black
Technical Data
General Data
2.4 mm
CTI 600
4 mm
6
IP20
8 mm
20 A
Connection Data
0,2 - 2,5 mm²
AWG 24 - 14
0,2 - 2,5 mm²
AWG 24 - 12
Material
PPA
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
800 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
SR25506HBNC
Standard pole sizes from stock
