SR99SxxVBNN / SR99SxxVWNN
Description
- ethernet-capable spring clamp terminal block, THR solderable, double solder pins
- direction of connection 90°
- fittable without loss of poles
- Tape & Reel packaging possible

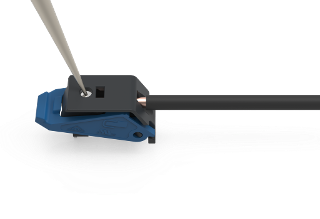

- finger push-button
- test point and wire connection indicator

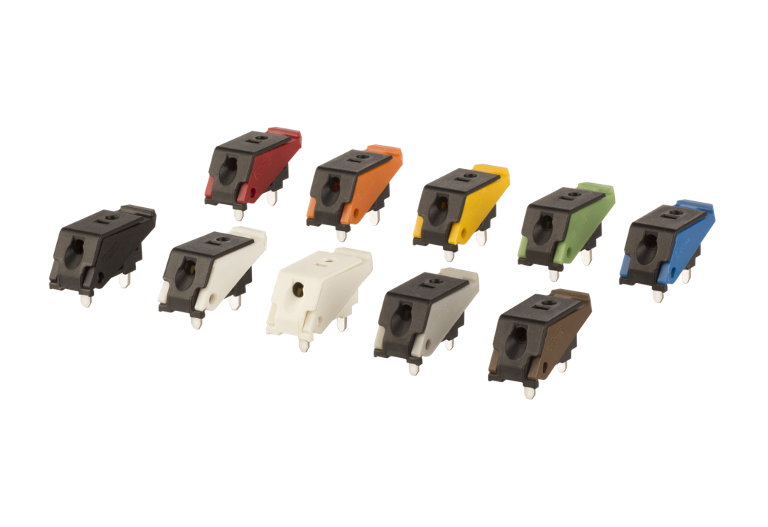

- Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
Technical Data
General Data
2.4 mm
CTI 600
1
IP20
7 mm
9 A
Connection Data
0,2 - 1,5 mm²
AWG 24 - 16
0,2 - 1,5 mm²
AWG 24 - 16
Material
PPA
V0
Spring steel
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
