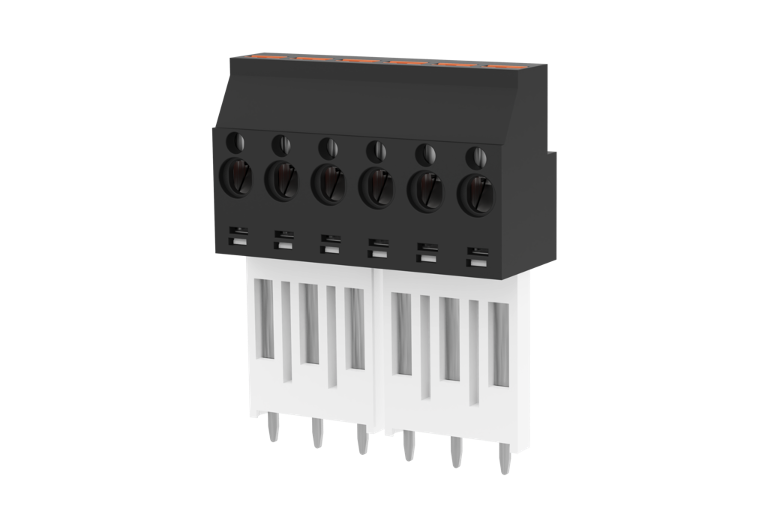

ST25506HBNN, 6-pole
Description
- spring clamp terminal block, THT solderable
- centerline 5.00 mm, direction of connection 90°
- fittable without loss of poles
- color black
Technical Data
General Data
2.6 mm
CTI 600
4 mm
6
IP20
8 mm
19 A
Connection Data
0,2 - 2,5 mm²
AWG 24 - 14
0,2 - 2,5 mm²
AWG 24 - 12
Material
PA66/PPA
V0
Spring steel
CuSn
Sn
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
ST25506HBNN
Pole sizes only available on demand
