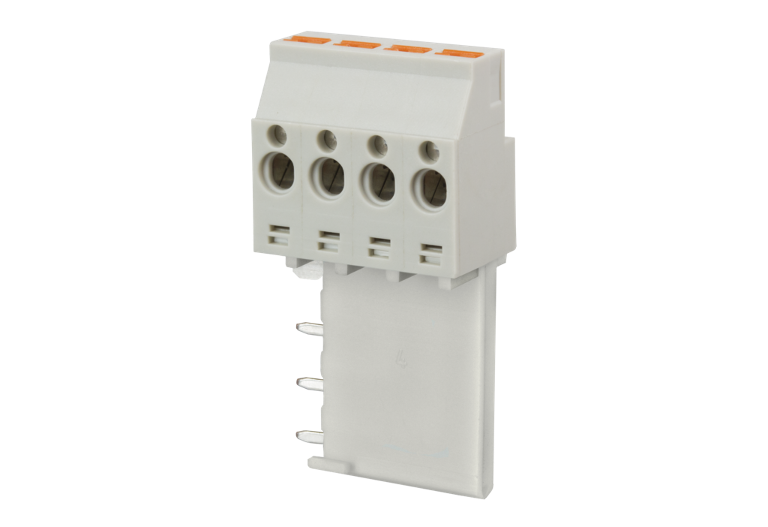

ST255xxHDNL
Description
- spring clamp terminal block, solderable
- centerline 5.00 mm, direction of connection 90°
- color gray
- solder pins right-angled to the left
Technical Data
General Data
3.6 mm
2
4
CTI 600
4 mm
IP20
8 mm
19 A
Connection Data
0,2 - 2,5 mm²
AWG 24 - 14
0,2 - 2,5 mm²
AWG 24 - 12
Material
PA66/PPA
V0
Spring steel
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes available within 4-6 weeks
Pole sizes only available on demand
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
