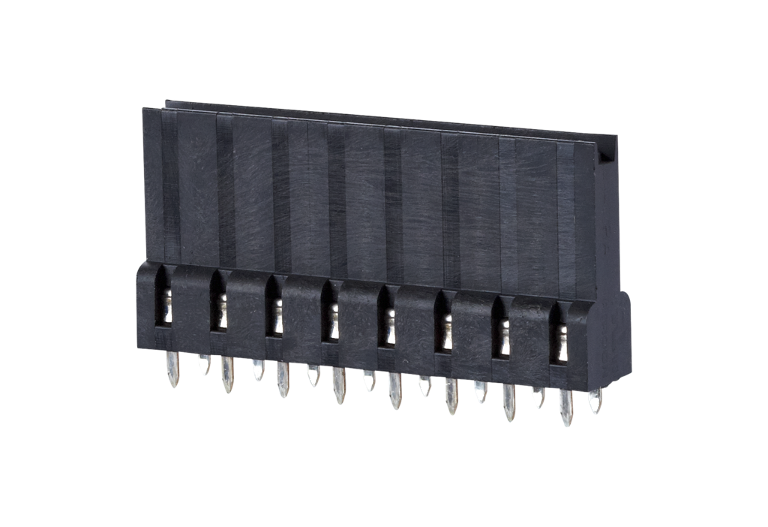

PT045xxVBBN Type 020
Description
- pin header, solderable
- centerline 5.00 mm, direction of connection vertical 0°
- closed ends
- color black
Technical Data
General Data
5.2 mm
2
22
CTI 600
3.7 mm
IP00
Material
PA66
V0
CuZnPb
Ni + Ag
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory

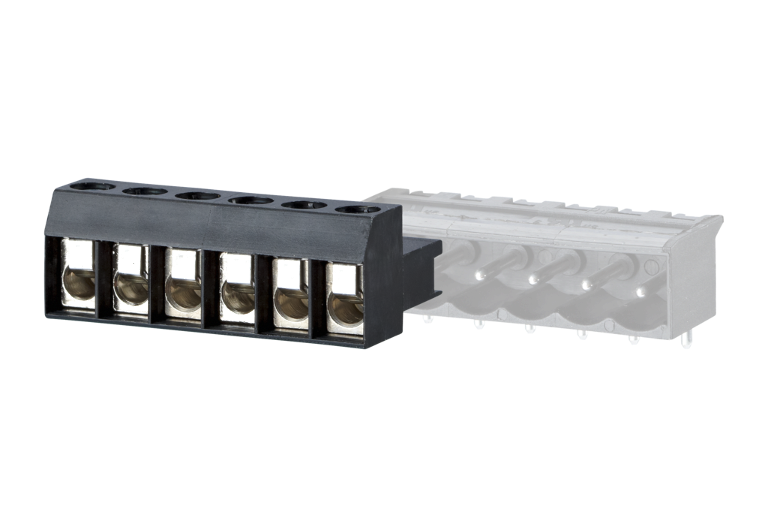

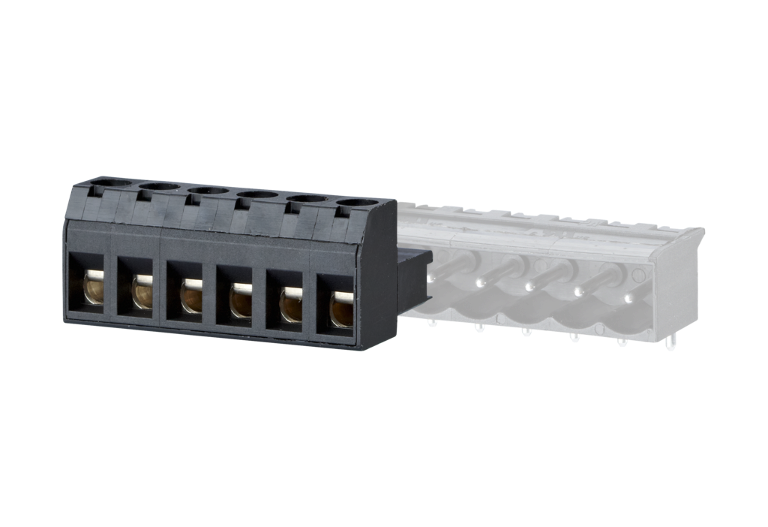

Counterpart from
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes only available on demand
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
Downloads
- REACh Statement
- 3D-Data (3D_PT04502VBBN) - Registration required -
- 3D-Data (3D_PT04503VBBN) - Registration required -
- 3D-Data (3D_PT04504VBBN) - Registration required -
- 3D-Data (3D_PT04505VBBN) - Registration required -
- 3D-Data (3D_PT04506VBBN) - Registration required -
- 3D-Data (3D_PT04511VBBN) - Registration required -
- 3D-Data (3D_PT04513VBBN) - Registration required -
- 3D-Data (3D_PT04514VBBN) - Registration required -
- 3D-Data (3D_PT04515VBBN) - Registration required -
- 3D-Data (3D_PT04518VBBN) - Registration required -
- 3D-Data (3D_PT04507VBBN) - Registration required -
- 3D-Data (3D_PT04508VBBN) - Registration required -
- 3D-Data (3D_PT04509VBBN) - Registration required -
- 3D-Data (3D_PT04510VBBN) - Registration required -
- 3D-Data (3D_PT04512VBBN) - Registration required -
- 3D-Data (3D_PT04516VBBN) - Registration required -
- Data sheet
Buy article from our partners
Sample order
Standard poles sizes
Additional Information
