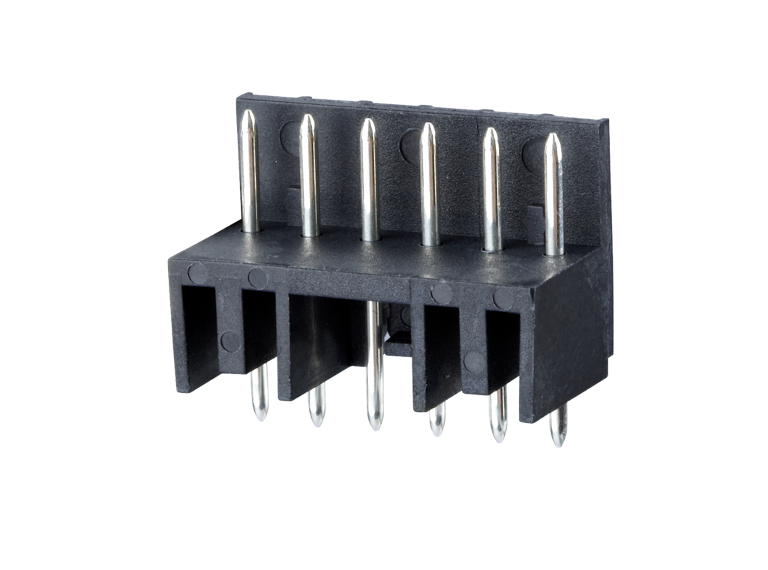

PT153xxVBEC Type 226

779515

Description

pin header, solderable
centerline 3.50 mm, direction of connection vertical 0°
open ends, guiding rips, fittable without loss of poles
color black

logo_culus

logo_sev

Technical Data

General Data

Solder pin length:

3.25 mm

min. number of poles:

2

max. number of poles:

24

Insulating material class:

CTI 600

clearance/creepage dist.:

2.5 mm

Protection category:

IP00

Material

insulating material:

PA66

flammability class:

V0

contact pin material:

CuZnPb

contact pin surface:

Ni + Ag

Glow-Wire Flammability GWFI:

960 °C acc. to IEC 60695-2-12

Glow-Wire Flammability GWIT:

775 °C acc. to IEC 60695-2-13

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Counterpart from

779587

RP023xxHBWC Type 166

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

312261

02 03 04 06 08

Pole sizes only available on demand

Downloads

Data sheet

Buy article from our partners

Beyond Components

Digi-Key Electronics

Distrelec Deutschland GmbH

element 14, an Avent Community

Farnell, an Avnet Company

Future Electronics

Heilind Asia Pacific

Heilind Electronics America

Heilind Electronics Europe

INELTRO ELECTRONICS GmbH

Master Electronics

Newark, an Avnet Company

reichelt elektronik GmbH & Co. KG

TLC Electronics

Find contact person

Inquiry

Additional Information

Product family Pin headers and female connectors
