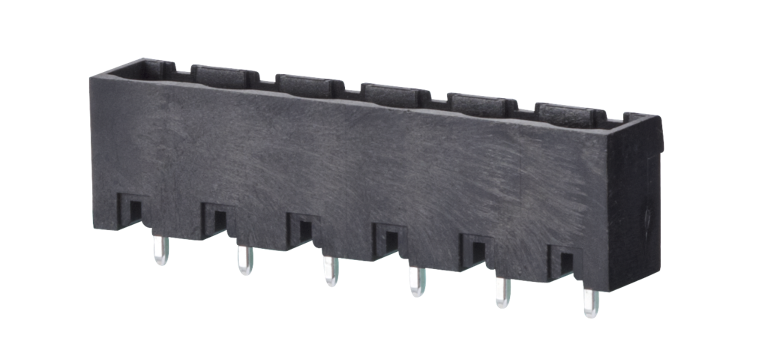

PT118xxVBBC Type 264
Description
- pin header, solderable
- centerline 7.62 mm, direction of connection vertical 0°
- closed ends
- color black
- codeable
Technical Data
General Data
3.25 mm
2
12
CTI 600
6.6 mm
IP00
Material
PA66
V0
CuFe
Ni + Ag
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories
Counterpart from
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes only available on demand
