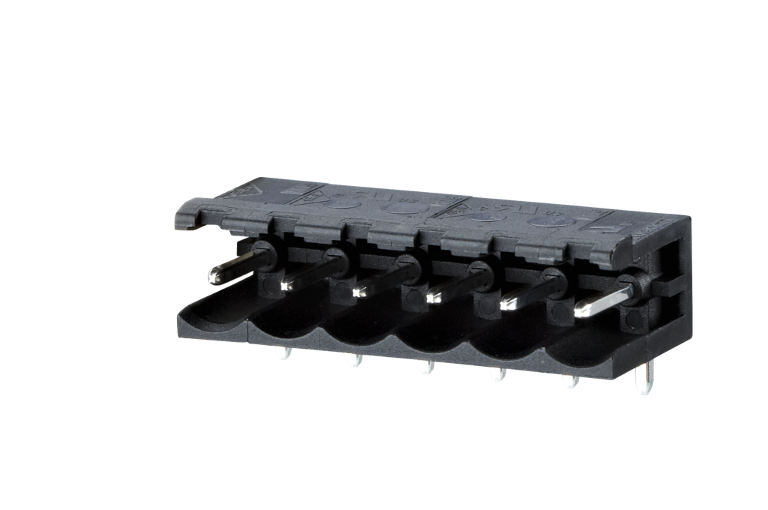

PT115xxHBEC Type 329
Description
- pin header, solderable
- centerline 5.00 mm, direction of connection 90°
- open ends, fittable without loss of poles
- color black

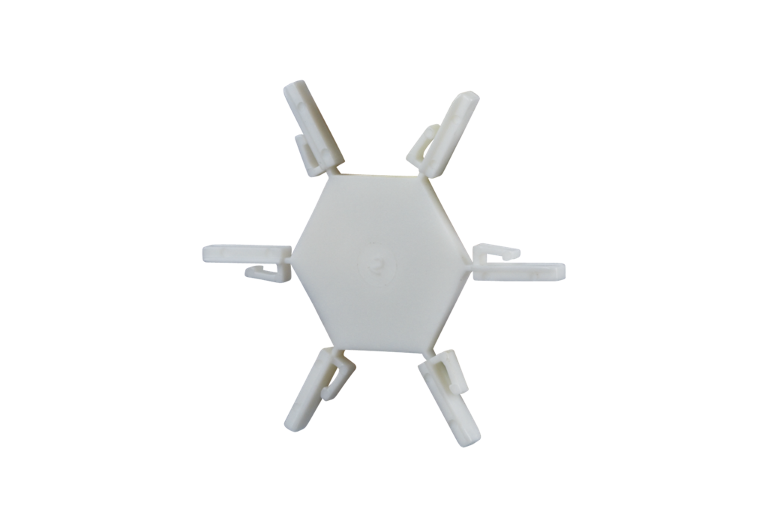

- codeable
Technical Data
General Data
3.45 mm
2
24
CTI 600
4 mm
IP00
Material
PA66
V0
CuFe
Ni + Ag
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories
Counterpart from
Part number
Downloads
- Data sheet
- 3D-Data (3D-Data PT11524HBEC_31329124) - Registration required -
- 3D-Data (3D-Data PT11523HBEC_31329123) - Registration required -
- 3D-Data (3D-Data PT11522HBEC_31329122) - Registration required -
- 3D-Data (3D-Data PT11521HBEC_31329121) - Registration required -
- 3D-Data (3D-Data PT11520HBEC_31329120) - Registration required -
- 3D-Data (3D-Data PT11519HBEC_31329119) - Registration required -
- 3D-Data (3D-Data PT11518HBEC_31329118) - Registration required -
- 3D-Data (3D-Data PT11517HBEC_31329117) - Registration required -
- 3D-Data (3D-Data PT11516HBEC_31329116) - Registration required -
- 3D-Data (3D-Data PT11515HBEC_31329115) - Registration required -
- 3D-Data (3D-Data PT11514HBEC_31329114) - Registration required -
- 3D-Data (3D-Data PT11513HBEC_31329113) - Registration required -
- 3D-Data (3D-Data PT11512HBEC_31329112) - Registration required -
- 3D-Data (3D-Data PT11511HBEC_31329111) - Registration required -
- 3D-Data (3D-Data PT11510HBEC_31329110) - Registration required -
- 3D-Data (3D-Data PT11509HBEC_31329109) - Registration required -
- 3D-Data (3D-Data PT11508HBEC_31329108) - Registration required -
- 3D-Data (3D-Data PT11507HBEC_31329107) - Registration required -
- 3D-Data (3D-Data PT11506HBEC_31329106) - Registration required -
- 3D-Data (3D-Data PT11505HBEC_31329105) - Registration required -
- 3D-Data (3D-Data PT11504HBEC_31329104) - Registration required -
- 3D-Data (3D-Data PT11503HBEC_31329103) - Registration required -
- 3D-Data (3D-Data PT11502HBEC_31329102) - Registration required -
Buy article from our partners
Sample order
Standard poles sizes
Additional Information
