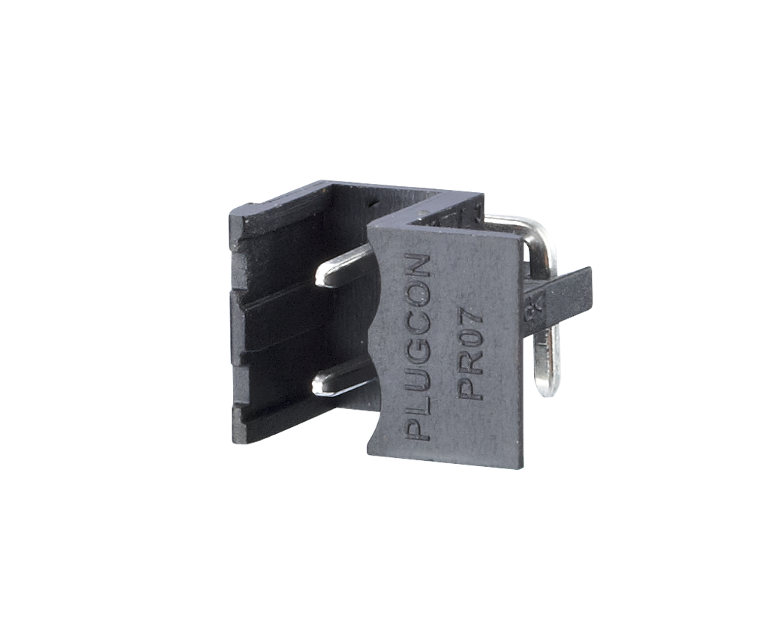

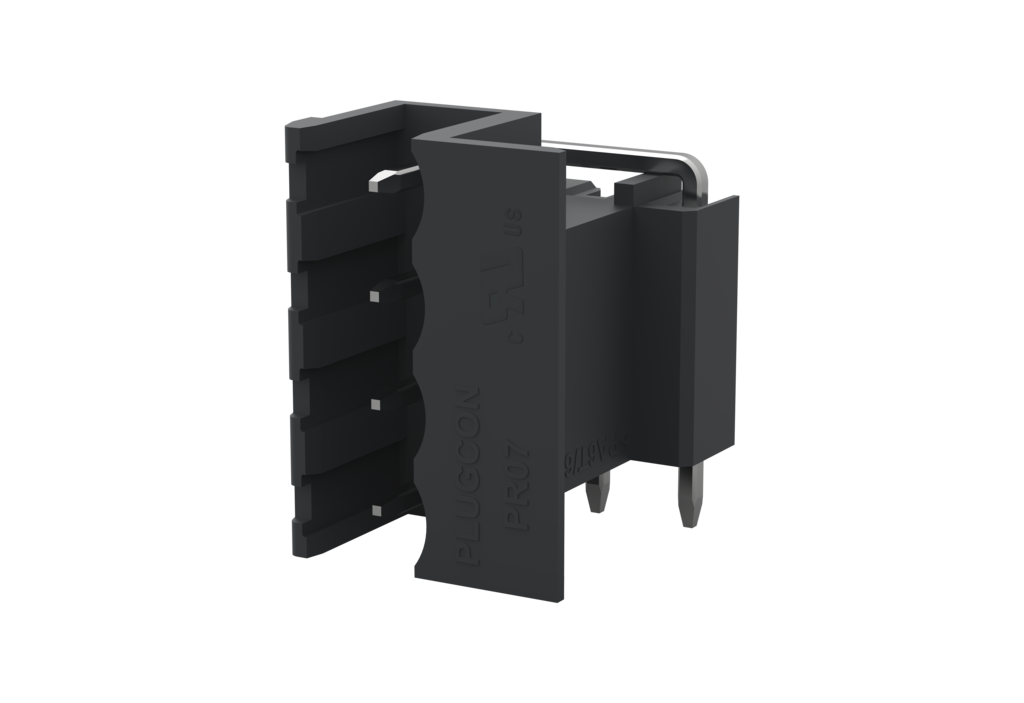

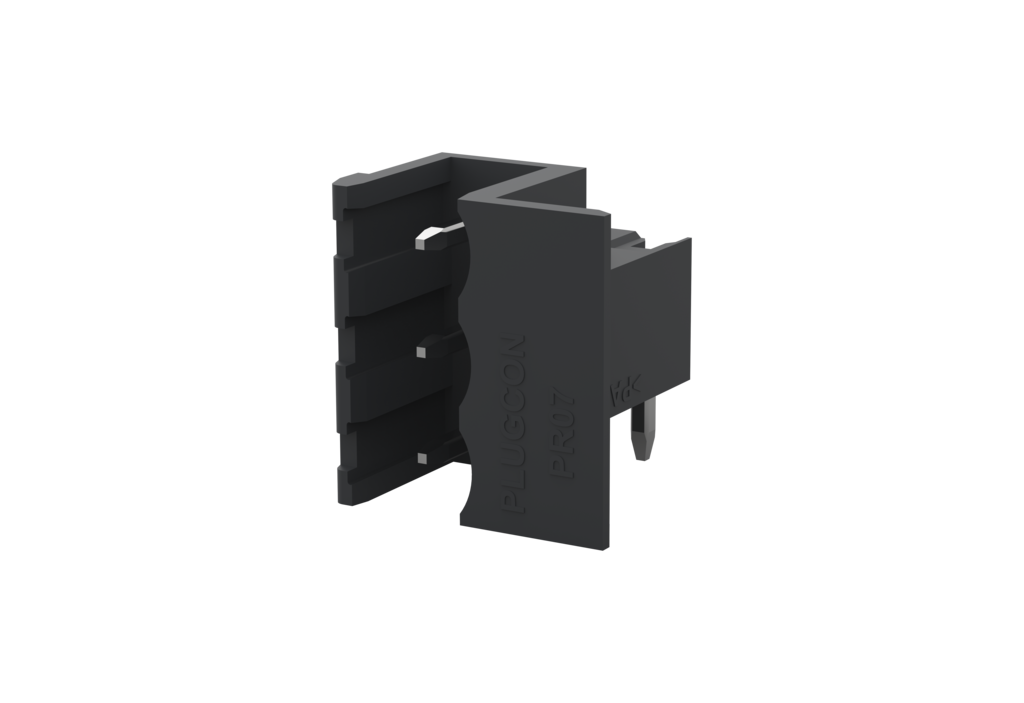

PR075xxHBEL Type 337
Description
- pin header, THR solderable
- centerline 5.00 mm, direction of connection 90°
- open ends, fittable without loss of poles
- color black
- Tape & Reel packaging possible
- codeable, connection left side, pluggable for module housing
Technical Data
General Data
3.85 mm
2
4
CTI 600
3.2 mm
IP00
Material
PA66/6T
V0
CuZn
Ni + Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
125 °C
-40 °C
Check US distributor inventory
Accessories
Counterpart from
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Pole sizes only available on demand
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
Downloads
- Data sheet
- 3D-Data (3D-Data PR07504HBEL_31337104) - Registration required -
- 3D-Data (3D-Data PR07503HBEL_31337103) - Registration required -
- 3D-Data (3D-Data PR07502HBEL_31337102) - Registration required -
