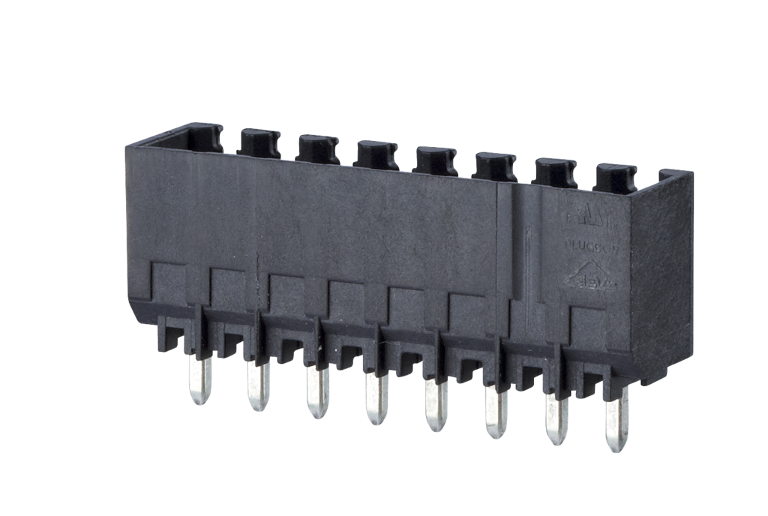

PW063xxVBBN Type 524
Description
- pin header, THR solderable
- centerline 3.50 mm, direction of connection vertical 0°
- closed ends
- color black
- Tape & Reel packaging possible
- with alternative face, codeable
Technical Data
General Data
3.2 mm
2
24
CTI 400
2.48 mm
IP10
Material
PA46
V0
CuMg
Cu + Sn
-
-
Climatic Data
105 °C
-40 °C
Check US distributor inventory

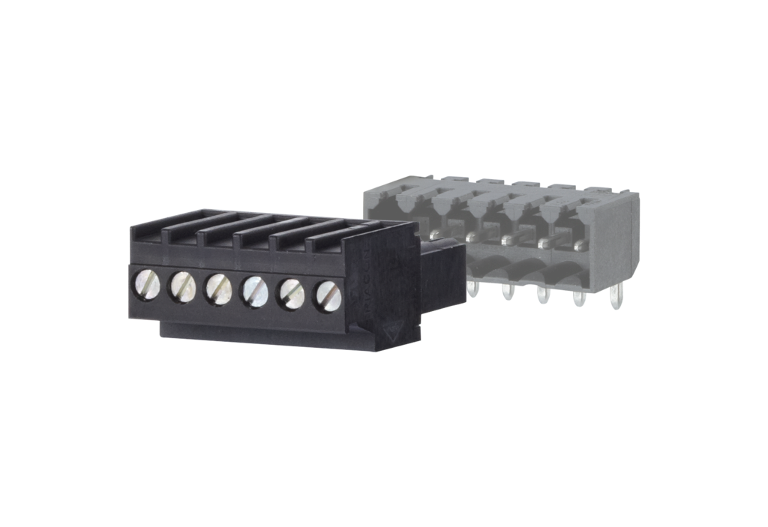

Counterpart from
Part number
