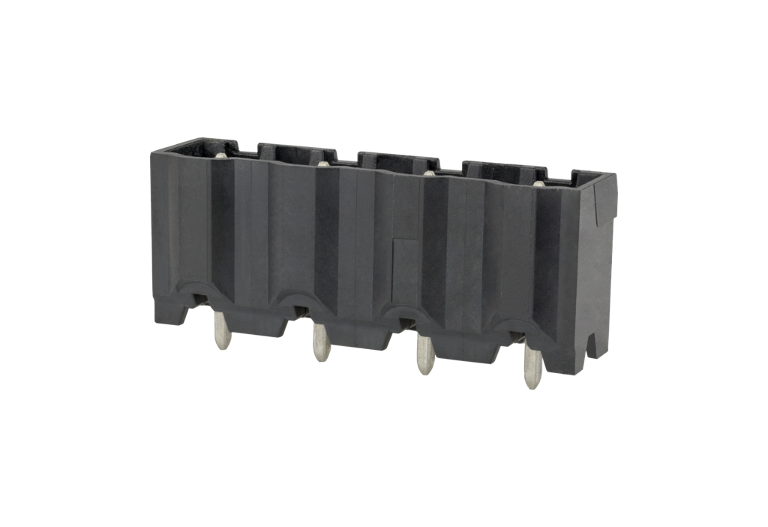

PR118xxVBBN

962006

Description

pin header, solderable
centerline 7.62 mm, direction of connection vertical 0°
closed ends
color black
codeable

logo_culus

logo_sev

Technical Data

General Data

Solder pin length:

2.4 mm

min. number of poles:

2

max. number of poles:

12

Insulating material class:

CTI 600

clearance/creepage dist.:

6.6 mm

Protection category:

IP00

Material

insulating material:

PA

flammability class:

V0

contact pin material:

CuMg

contact pin surface:

Cu + Ni + Sn

Glow-Wire Flammability GWFI:

850 °C acc. to IEC 60695-2-12

Glow-Wire Flammability GWIT:

775 °C acc. to IEC 60695-2-13

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Accessories

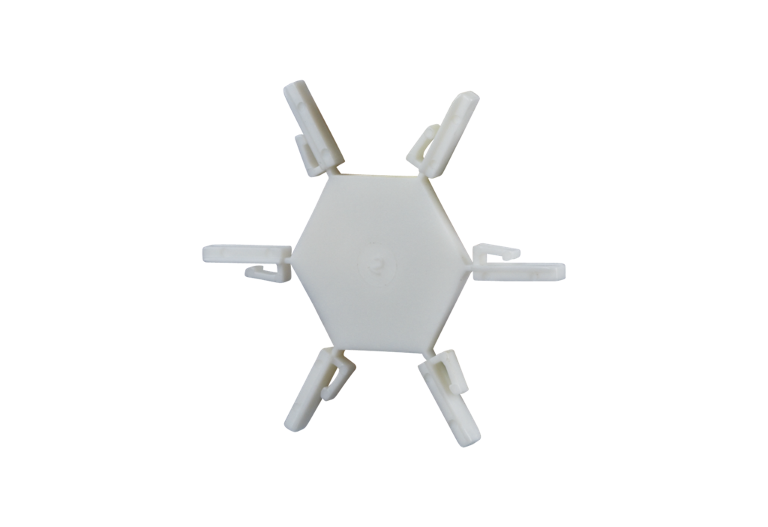

779273

Coding star white

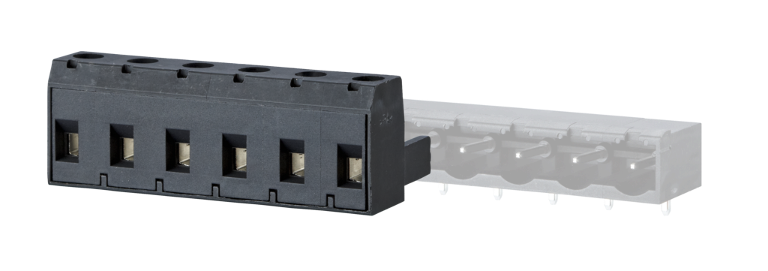

Counterpart from

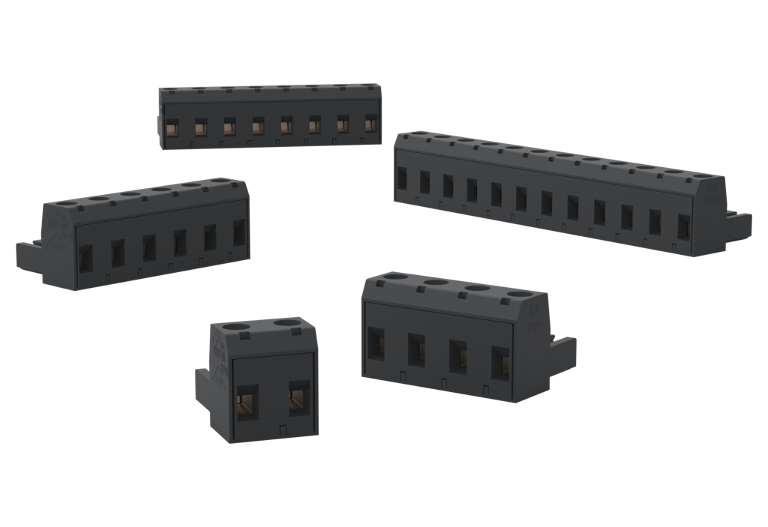

779487

RP018xxVBLC Type 262

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

PR118

VBBN

02 04

Standard pole sizes from stock

Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!

Downloads

Data sheet

Buy article from our partners

Beyond Components

Digi-Key Electronics

Distrelec Deutschland GmbH

element 14, an Avent Community

Farnell, an Avnet Company

Future Electronics

Heilind Asia Pacific

Heilind Electronics America

Heilind Electronics Europe

INELTRO ELECTRONICS GmbH

Master Electronics

Newark, an Avnet Company

reichelt elektronik GmbH & Co. KG

TLC Electronics

Find contact person

Inquiry

Sample order

Standard poles sizes

Additional Information

Product family Pin headers and female connectors
